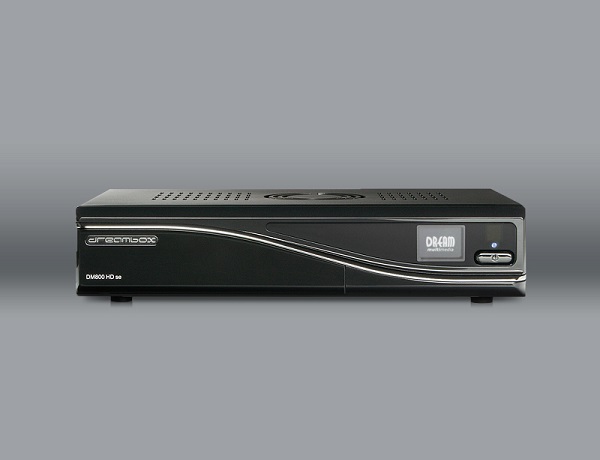

DM800 HD se

What isย DM800 HD se?

Powerful receiver for digital TV and Radio programs.

Main features are a 4 00 MHz processor. The Dreambox DM800 HD se supports the Linux TV API

Have a look to HighDefinition TV on your Dreambox

  • 10/100MBit compatibleย Ethernet Interface
  • HDMI connector
  • plug &ย play Tuner
  • colored OLED display
  • plug & play slot for an internal 2,5? SATA hard disk

Technical Features

  • 400 MHz MIPS Processor
  • Enigma 2, Linux Operating System
  • colored OLED โ€“ Display
  • MPEG-2 / H.264 Hardware decoding
  • Tuner: DVB-S, optional: DVB-C, DVB-T
  • Tuner Module, Plug&Play
  • 2 x Smartcard-Reader (Dreamcrypt CA)
  • Mini USB for Service and software update
  • 10/100Mbit Ethernet Interface
  • 1 x Scart (RGB, FBAS or S-Video)
  • HDMI
  • 2 x USB 2.0 (e.g keyboard)
  • analog modem
  • S/PDIF Interface for digital bit stream out (AC-3)
  • 64 MByte Flash, 256 MByte RAM
  • SATA
    โ€“ for internal HDD 2,5โ€œ
  • unlimited channel lists for TV/Radio
  • channel-change time < 1 second
  • automatic service scan
  • directly bouquet-lists
  • EPG (electronic program guide)
  • multiple LNB-Switching control (supports DiSEqC)
  • OSD in many languages and skin-support
  • Videotext Decoder
  • extern 12V power supply

DM800 HD se

Setup IPTV using XtreamTV plugin in Enigma 2

Install IPTV via autoscript bouquet list on Enigma2

Flashing a new firmware (image)

Flashing a new firmware with Browser (click here)

Flashing a new firmware with DreamUp (click here)

USB to UART Treiber

The USB to UART drivers are required for device operation as a Virtual COM Port to facilitate host communication with the DM800 HD se.

Firmware / Image

Date

Release 3.1.0

23.03.2011


Userย manual DM800 HD se
(PDF โ€“ english)

DreamBox DM800 HD se technical data

DBS-Tuner mit DVB-S2:
Frequency Rangeย  950 โ€ฆ. 2150 MHz
Demodulation DVB-S (QPSK); DVB-S2 (8PSK,QPSK)
Symbol rate DVB-S: 2 โ€ฆ 45 Mbaud/s, SCPC/ MCPC
DVB-S2: 10 โ€“ 31 Mbaud/s (8PSK) , 10 โ€“30 Mbaud/s (QPSK)

Video decoder:
Video Compression MPEG-2 and MPEG-1 compatible, H.264
Video Formats 4:3 / 16:9
Letterbox for 4:3 TV-Device

Audio decoder:
Audiokompression MPEG-1 & MPEG-2 Layer I and II, MP3
Audio Mode Dual (main/sub), Stereo
Frequency: 32 kHz, 44.1 kHz, 48 kHz, 16 kHz, 22.05 kHz, 24 kHz

Output analog:
Output Level L/R 0,5 Vss on 600 Ohm
THD > 60 dB (1 kHz)
Crosstalk < -65 dB

Output digital:
Output Level 0,5 Vss on 75 Ohm
Sampled Data Filtering 32 kHz, 44.1 kHz, 48 kHz
S/PDIF-Output optical, Toslink

Ausgang Video:
Ausgangspegel FBAS 1 Vss +/- 0.3 dB an 75 Ohm

Video parameter:
Input Level FBAS 1 Vss +/- 0.3 dB on 75 Ohm
Teletext filter in conformity with ETS 300 472 Standard

TV-Scart:
Output: FBAS, RGB, S-Video

Mini USB service connector:
Function: Update of Firmware

Ethernet:
10/100 MBit compatible interface
Function: Update of Firmware

Analoge modem:
analoge modem for Internet connection

SATA Interface:
for internal 2,5? HDD

USB
2 x USB 2.0

LNB power and polarisation per tuner:
LNB Current 500mA max.; short-circuit-protected
LNB Voltage vertical < 14V no load, > 11,5V at 400mA
LNB Voltage horizontal < 20V no load, > 17,3V at 400mA

Count of active satellite position:
DiSEqC 1.0/1.1/1.2 and USALS (Rotor Control)

Power consumption:
< 15W at 12V

External PSU
Input:
110-240V AC / 50-60Hz / 0,6A
Output:
12V = / 3,0A

Physical specification:
Ambient Temperature +15ยฐCโ€ฆ+35ยฐC
Humidity < 80%
Size (W x D x H): 225 mm x 145 mm x 52 mm
Weight: 940 gย  without HDD
