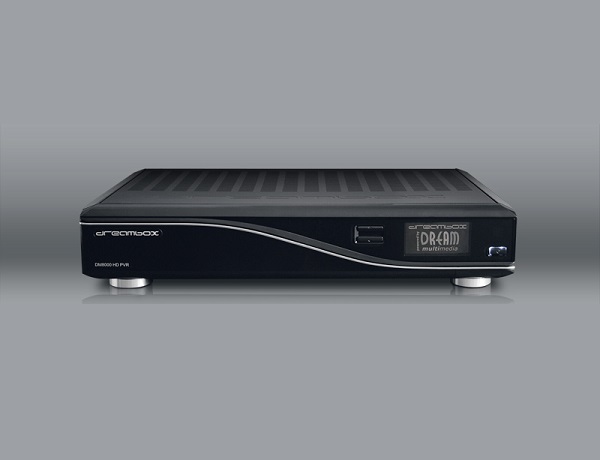

DM8000 HD PVR

What is DM8000 HD PVR?

Powerful receiver for digital TV and Radio programs.

Main features are a 400 MHz processor the Dreambox DM8000 supports the Linux TV API

  • MPEG-2 / H.264 decoding
  • 10/100MBit compatible Ethernet Interface
  • DVD support
  • Twin-DVB-S2 tuner
  • optional DVB-C or DVB-T
  • mixable, plug & play
  • big size OLED display

Technical data

  • 400 MHz MIPS Processor
  • Enigma 2, Linux Operating System
  • brilliant big-size OLED – Display
  • MPEG-2 /H.264 Hardware decoding
  • TWIN DVB-S2 tuner
  • 2 x Plug&Play tuner sockets
    optional for DVB-S, DVB-C or DVB-T
  • 4 x DVB Common-Interface Slot
  • 2 x Smartcard-Reader (Dreamcrypt CA)
  • V.24/RS232 Interface
  • Integrated Compact Flash and SD Card Slot
  • 10/100 MBit compatible Ethernet Interface
  • 3 x USB 2.0 (1 x front, 2 x back)
  • S/PDIF Interface for digital bit stream out (AC-3)
  • 2 x Scart-interfaces
  • S-Video
  • YPrPb (Component)
  • DVI
  • Audio/Video cinch out
  • 128 MByte Flash, 256 MByte RAM
  • 2 x integrated SATA
    – support for internal HDD 3,5? in any capacity
    – support for SATA SlimLine DVD
  • embedded WiFi (Mini-PCI device inl. antenna)
  • unlimited channel lists for TV/Radio
  • channel-change time < 1 second
  • automatic service scan
  • directly bouquet-lists
  • EPG (electronic program guide)
  • Videotext Decoder
  • multiple LNB-Switching control (DiSEqC)
  • OSD in many languages and skin-support

Setup IPTV using XtreamTV plugin in Enigma 2

Install IPTV via autoscript bouquet list on Enigma2

Flashing a new firmware with Browser (then click here)

Flashing a new firmware with DreamUp (then click here)

Firmware / Image Date
Firmware 3.1.0 23.03.2011


User manual DM8000
(PDF – English for Release from 10.12.2008)

Flash firmware (Image):

DM8000 needs a special format called “nfi”, which contains a header (and possibly a CRC) and 3 different partitions (loader, boot, root). You can flash this either with the bootloader directly (using a special HTTP client or using a browser), or using a special version of Dreamup. The good news are that you can flash even without a serial cable, you just have to interrupt the boot process by pressing a front panel key.

If you don’t have a network, or trashed your second stage loader, you can flash using only a serial cable.

< /div>

DreamBox DM8000 technical data < /h2>

DBS-Tuner: Frequency Range 950.. .2150 MHz QPSK Demodulation EN 302 307 Signal Level – 65 dBm…-25 dBm Signal – to – Noise Level 12 dB max. DBS – Tuner Input Connector F – Type female Input Impedance 75 Ohm AFC + /- 3 MHz
Demodulation Shaped QPSK and 8 PSK FEC Viterbi and Reed – Solomon Viterbirate 1 / 4, 1 / 3, 2 / 5, 1 / 2, 3 / 5, 2 / 3, 3 / 4, 4 / 5, 5 / 6, 8 / 9 Roll – off Factor 35 %

Common-Interface: Common – Interface Power nsumption max.0, 3 A / 5 V

Video decoder: Video Compression MPEG – 2 / H .264 and MPEG – 1 compatible Video Standard PAL G / 25 Hz, NTSC Video Formats 4: 3 / 16: 9 Letterbox for 4: 3 TV – Device

Audio decoder: Audiokompression MPEG – 1 & amp;MPEG – 2 Layer I and II, MP3 Audio Mode Dual(main / sub), Stereo Frequency: 32 kHz, 44.1 kHz, 48 kHz,16 kHz,22.05 kHz, 24 kHz

Output analog: Output Level L / R 0, 5 Vss on 600 Ohm THD & gt;60 dB(1 kHz) Crosstalk & lt; – 65 dB

Output digital: Output Level 0, 5 Vss on 75 Ohm Sampled Data Filtering 32 kHz, 44.1 kHz, 48 kHz S / PDIF – Output optical, coaxial(AC3)

Video parameter: Input Level FBAS 1 Vss + /- 0.3 dB on 75 Ohm
Teletext filter in conformity with ETS 300 472 Standard

TV-Scart: Output: FBAS, RGB, S – Video

VCR-Scart: FBAS

Serielle Interface RS 232: Typ RS232 bidirectional Bitrate 115, 2 kBit / s max. Plug Connector SUB – D – 9 Function: Update of Firmware

Ethernet: 10 / 100 MBit compatible interface Function: Update of Firmware

USB: USB 2.0 connector(3 x)

SATA Interface: for internal HDD Compact Flash – Reader SD Card – Reader

LNB power and polarisation per tuner: LNB Current 500 mA max.;short – circuit – protected LNB Voltage vertical & lt;14 V no load, & gt;11, 5 V at 400 mA LNB Voltage horizontal & lt;20 V no load, & gt;17, 3 V at 400 mA LNB power off in Standy mode

Count of active satellite position: DiSEqC 1.0 / 1.1 / 1.2 and USALS(Rotor Control)

Power consumption: & lt;30 W( in operation, horizontal polarization / 400 mA LNB current) & lt;25 W( in operation, no LNB) & lt;10 W(Deep – Standby – Mode)

Input voltage: 230 V / 50 Hz alternating current + /- 15%
110 V / 60 Hz alternating current + /- 15%

<p> Physical specification:

Ambient Temperature + 15 & deg;C…+35 & deg;C Humidity & lt;80 % Size(W x D x H): 430 mm x 280 mm x 90 mm Weight: 3, 0 kg & nbsp;without HDD a.DVD & nbsp;
